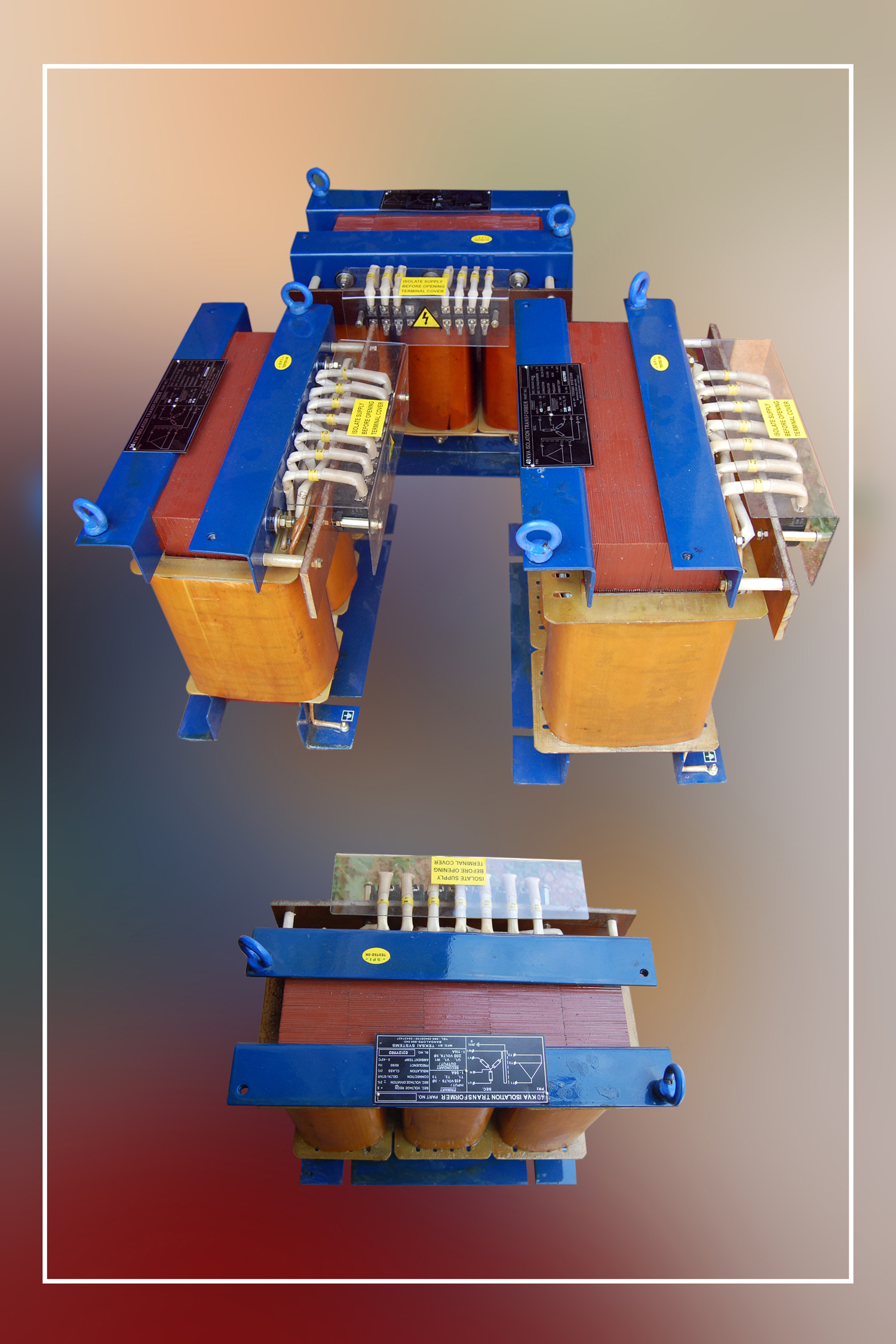

ISOLATION TRANSFORMER

TEKSAI Isolation Transformer is Designed & Constructed with Primary and Secondary winding closely wrapped about the same ferrous core. A single faraday shield is used between the Primary and Secondary windings. Isolation Transformers block transmission of DC signals from one circuit to the other, but allow AC signals to pass. They also block interference caused by ground loops.

TECHNICAL SPECIFICATION
01 Applicable Standards : As per IS: 2026
02 Number of phases : Single / Two / Three
03 Primary Voltage : 415V or as required
04 Secondary Voltage : 415V or 200V or as required
05 Connection : Delta / Star or Star / Star or Delta / Delta
06 Cooling : Air Natural Cooled / Forced Air Cooled
07 Insulation : Class F / Class H
08 Regulation : 2-4% at unity power factor
09 Vector Group : Dyn11 or as required
10 Ambient : 0-500C & 95% R.H. MAX
11 Overload Capacity : 125% for 30 minutes
12 Short Circuit Period & Percentage : 300% for 250 millisecond
13 List of routine test : As per IS: 2026
14 Type : Transformer CRGO laminated, primary & secondary
separately wound with annealed high conductivity
copper conductor duly insulated for rated
voltage and brought out to brass bolted type terminals

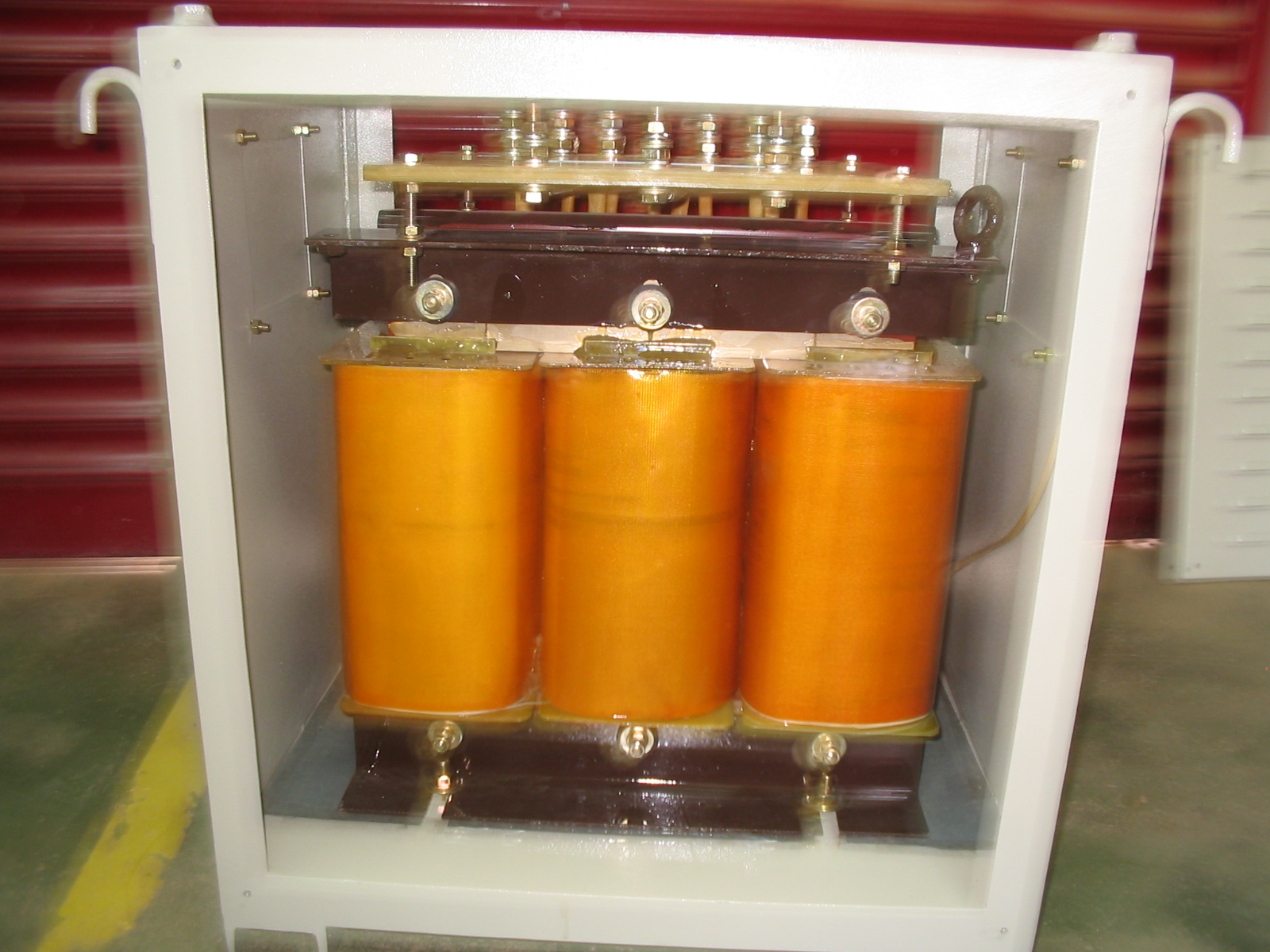

15 Enclosure : Enclosed in sheet metal structure of adequate thickness with louvers for ventilation and wheels for Movability.
16 Terminations : All input & output terminals brought out on a terminal board through studs of adequate rating
